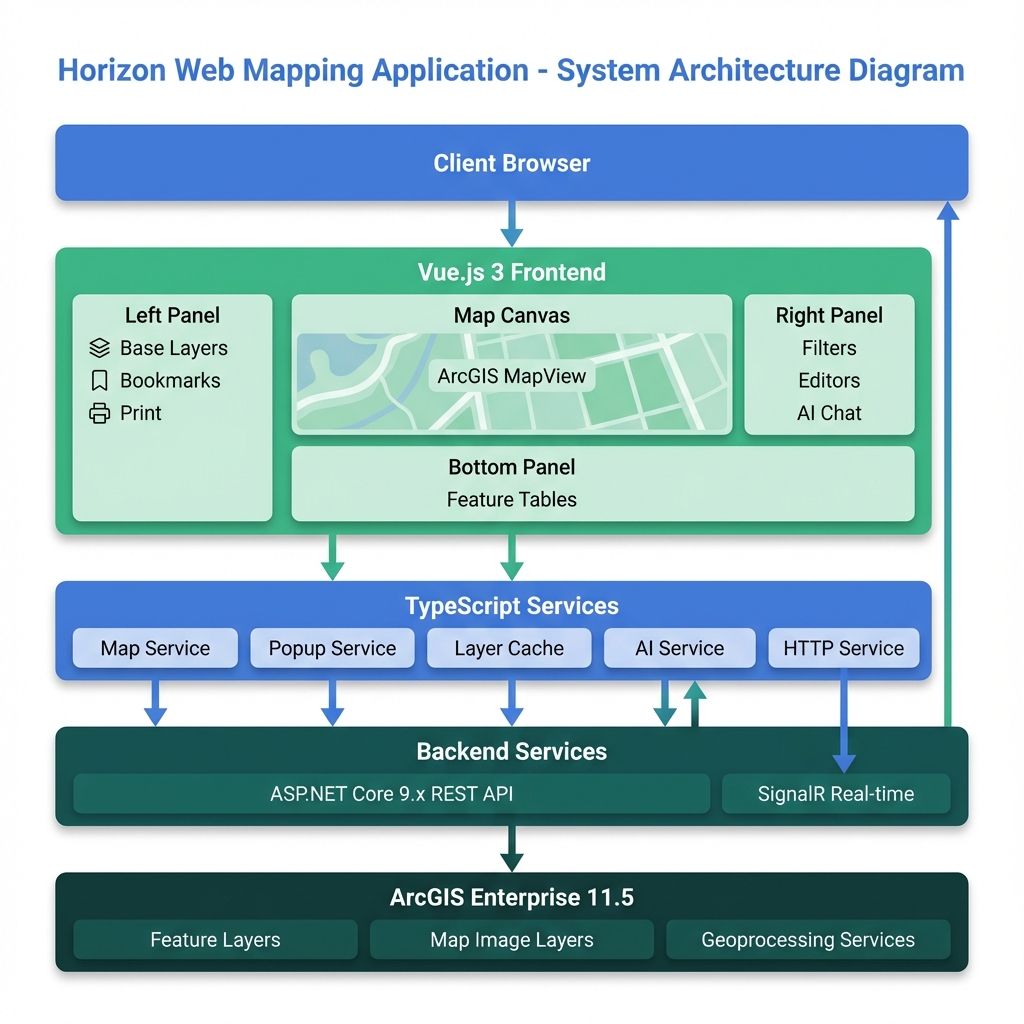

System Architecture Diagram

The diagram above shows the complete system architecture of Horizon:

• Client Layer: Web browser accessing the application
• Frontend Application: Vue.js 3 with TypeScript services and state management
• Backend Services: ASP.NET Core 9.x REST API with SignalR real-time updates
• GIS Platform: ArcGIS Portal and Enterprise 11.5
• Data Layer: Feature Layers, Map Image Layers, and WMS services

Data Flow

sequenceDiagram
    participant User
    participant UI as Vue Component
    participant Service as TypeScript Service
    participant Cache as Layer Cache
    participant API as ArcGIS API
    participant Server as Enterprise Server

    User->>UI: Interact with Map
    UI->>Service: Request Data
    Service->>Cache: Check Cache

    alt Cache Hit
        Cache-->>Service: Return Cached Data
    else Cache Miss
        Service->>API: Query Layer
        API->>Server: Fetch Data
        Server-->>API: Return Features
        API-->>Service: Process Results
        Service->>Cache: Store in Cache
    end

    Service-->>UI: Update View
    UI-->>User: Display Results

---

Overview

Horizon is a Vue.js 3 + TypeScript web mapping application built with ArcGIS API for JavaScript.

Built for: Forestry and mapping professionals Focus: Fast performance, modular design, reliable operation

Key Principles

Principle	What it means
Performance at Scale	Smart caching, batch loading, lazy initialization
Modular Design	Plugin-based editors, clear separation
Reliable Operation	Error handling, graceful degradation

---

Quick Reference

What Makes Horizon Fast?

• Lazy Loading: Only loads what you need, when you need it
• Smart Caching: Remembers layers to avoid repeated lookups
• Batch Processing: Loads large bookmarks in chunks, not all at once
• Auto Cleanup: Removes unused resources automatically

Key Components

Component	Purpose
36 Vue Components	UI panels and tools
11 TypeScript Services	Backend logic and data handling
Layer Cache System	Fast layer access and filtering
Panel Manager	Coordinates 40+ panels
Event Bus	Component communication

---

Application Structure

Panel Layout

┌─────────────────────────────────────────────────────────────┐
│                     HORIZON APPLICATION                     │
├─────────────────────────────────────────────────────────────┤
│                                                             │
│  LEFT PANEL          CENTER MAP           RIGHT PANEL       │
│  (Primary)          (Main View)          (Contextual)       │
│                                                             │
│  • Base Layers      ┌───────────┐        • Filter Panel    │
│  • Add Layers       │   Map     │        • Area Summary    │
│  • Layers           │  Canvas   │        • Map Editors     │
│  • Bookmarks        │           │        • Analysis Tools  │
│  • My Layers        │ Graphics  │        • Style Tool      │
│  • Print            │           │        • Measure         │
│  • System Panel     │  Search   │        • Feature Table   │
│  • Help             └───────────┘        • AI Chat         │
│  • Plot Generator                                           │
│                                                             │
│  ─────────────────────────────────────────────────────────  │
│                                                             │
│  BOTTOM PANEL (Collapsible)                                │
│  • Production Summary Table                                 │
│  • Feature Tables                                           │
│  • Analysis Results                                         │
│                                                             │
└─────────────────────────────────────────────────────────────┘

Panel Organization

Left Side (Always Available)

• Core features and navigation
• Configuration tools
• System management

Right Side (Context-Specific)

• Analysis tools
• Map editors
• Advanced functions

Bottom (Data Display)

• Tables and results
• Reports
• Feature data

Top (Floating)

• Quick controls
• Scale selector
• View options

---

Technical Stack

Frontend Framework

Vue.js 3 with Composition API

• Modern reactive system
• Reusable composables
• Optimal performance

TypeScript

• Type safety throughout
• Prevents runtime errors
• Better IDE support

Mapping Platform

ArcGIS JavaScript API

• 2D mapping (MapView)
• Multiple layer types
• Spatial analysis tools
• Enterprise integration

Coordinate System

• Standard: EPSG:28355 (GDA94 / MGA Zone 55)
• For: Australian coordinates

UI Components

Calcite Design System (via CDN)

• Consistent Esri design
• Avoids bundle conflicts
• Modern web components

---

Core Features

Layer Management

Layer Types Supported

Type	Use Case	How it Works
FeatureLayer	Real-time data	Client-side rendering, fast interactions
MapImageLayer	Large datasets	Server-side rendering, handles big data
GraphicsLayer	Temporary edits	Always on top, immediate feedback
WMS Layer	External data	Standard web services

Smart Features

Layer Conversion

• Switch between FeatureLayer ↔ MapImageLayer
• Choose based on performance needs
• Preserves styling and filters

Layer Cache

• Tracks all layers automatically
• Provides instant filtered lists
• Monitors performance

Dynamic Loading

• Loads layers only when needed
• Groups by function (editors, data, etc.)
• Prevents startup slowdown

Bookmark System

Adaptive Loading

Bookmark Size	Strategy	User Experience
1-3 layers	Load all at once	Instant
4-6 layers	Load in batches of 2	Shows progress
7+ layers	Load in batches of 3	Shows progress

Why? Prevents browser freezing on large bookmarks

Popup System

Unified Experience Across Layer Types

FeatureLayer    → Direct attribute access
MapImageLayer   → Server identify requests
WMS Layer       → GetFeatureInfo calls

All appear the same to users, handled differently behind the scenes.

Search & Geocoding

Multi-Source Search

• Feature layers
• Address locators
• Portal items

Smart Results

• Prioritized by relevance
• Custom formatting
• Spatial and attribute queries

---

Performance & Scalability

How We Keep It Fast

1. Smart Loading

What loads when:

• Startup: Only essential components
• User action: Specific tools on demand
• Bookmark: Layers in optimized batches

Result: Fast startup, responsive experience

2. Caching Strategy

Layer Cache

First access  → Finds layer (slow)
Cached        → Instant retrieval (fast)
Auto-update   → Stays current

Cache Hit Rate Tracking

• Monitors efficiency
• Identifies bottlenecks
• Guides optimizations

3. Memory Management

Automatic Cleanup

• Removes unused graphics
• Clears old event listeners
• Recycles geometry objects

Result: Stable performance in long sessions

4. Rendering Optimization

Smart Rendering

• Scale-dependent visibility
• Automatic level-of-detail
• WebGL acceleration (when available)
• Graphics clustering for large datasets

Scalability Features

Component Organization

36 Components in Clear Structure

src/components/
├── AnalysisPanels/     → Domain tools
├── MapEditors/         → Editing functionality
└── shared/             → Reusable UI

Service Architecture

11 Specialized Services

Service	Responsibility
Map Service	Map/view management
Popup Service	Cross-layer popups
Layer Conversion	Type switching
AI Service	Chat & analysis
HTTP Service	API communication
...	(6 more)

Why separate? Each service has one job, easier to maintain and test

Panel Management

40+ Panels Organized

• Primary panels (left): Core features
• Contextual panels (right): Analysis tools
• Event-driven coordination
• No coupling between panels

---

Developer Experience

Build System

Vite Configuration

• Fast hot module replacement
• Optimized production builds
• Tree-shaking for smaller bundles
• ArcGIS dependencies excluded from dev optimization

Code Quality

TypeScript Benefits

• Catches errors at compile time
• Auto-completion in IDE
• Self-documenting code
• Safer refactoring

Clear Patterns

• Composition API for logic reuse
• Service layer for business logic
• Event bus for communication
• Constants for configuration

Configuration

Flexible Setup

What	Where	Why
UI Text	Constants file	Easy updates, i18n ready
Styling	CSS/Theme	Consistent design
Runtime Config	JSON	Deploy-specific settings
Types	TypeScript interfaces	Contract enforcement

---

Reliability & Error Handling

Multi-Layer Protection

Level 1: Global Handler

• Catches all errors
• Filters known library issues
• Logs for debugging

Level 2: Component Guards

• Try/catch in critical paths
• Graceful degradation
• User-friendly messages

Level 3: Service Fallbacks

• Retry logic for network
• Polling if reactive fails
• Timeout protection

User Experience Focus

Silent Recovery

• Known issues handled transparently
• No technical jargon to users
• System keeps working

Feedback

• Clear progress indicators
• Timeout warnings
• Helpful error messages

Stability

• Memory leak prevention
• Automatic cleanup
• Session persistence

---

Integration Capabilities

ArcGIS Portal

Features

• OAuth2 authentication
• Portal item access
• User preferences sync
• Organizational basemaps

Enterprise Systems

Connectivity

• RESTful service consumption
• Token-based security
• Real-time updates (SignalR)
• Offline capability

Geoprocessing

Analysis Tools

• Server-side processing
• Custom GP services
• Long-running job management
• Result visualization

---

Summary: Why This Architecture?

For Users

✅ Fast - Smart caching and lazy loading ✅ Reliable - Error handling and fallbacks ✅ Scalable - Handles small to enterprise datasets ✅ Responsive - Optimized rendering and batching

For Developers

✅ Maintainable - Clear patterns and separation ✅ Extensible - Plugin architecture ✅ Type-Safe - TypeScript throughout ✅ Well-Documented - Architecture explained

For Organizations

✅ Enterprise-Ready - Portal integration ✅ Customizable - External configuration ✅ Performant - Optimized for scale ✅ Future-Proof - Modern tech stack
